BieneControl Module Mechanical and Electrical Specification

Green - BieneControl Board. White - Extension Board for your application.

BieneControl Enclosure

BieneControl Enclosure - PACTEC JM33.

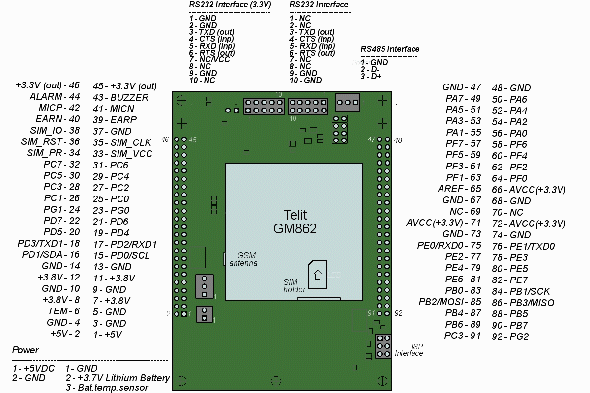

BieneControl Board Mechanical Dimensions

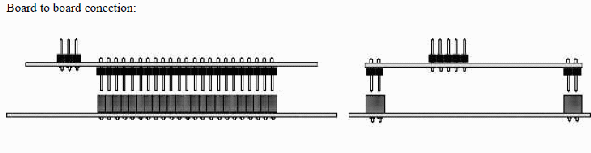

Board-to-Board and Wire-to-Board Connection

Applications

Extension board include two 2x13 vertical female connector (socket) 1-0215307-3 (AMP) or 85303213SG (Essen Deinki).

Recomended enclosures for embedded systems applications - FIBOX MNX Series :
ABS 150/35 LT, ABS 150/50 LT, ABS 125/35 LT, ABS 100/35 LT,
ABS 150/75 HT, ABS 150/60 HT, ABS 125/60 HT, ABS 100/60 HT.

ELECTRICAL SPECIFICATION

BieneControl Module based on Atmel AVR microcontroller ATmega8535 and ATmega128.
Electrical signal specification identical for microcontroller pin electrical specification. Microcontroller pins contacts on the two bus connectors - 2x13 pin header (2.54mm).
52 signal contacts on the two pin header connectors (26 pins on P1, plus 26 pins on P2).
Signal assignments for two 2x13 pin header are given in Electrical Specification.
