GSM/SMS Remote Control Module
BieneRemote160SM and BieneRemote161SM
(OEM)
Remote Control and Monitoring

BR160SM and BR161SM (DIN-Rail products)

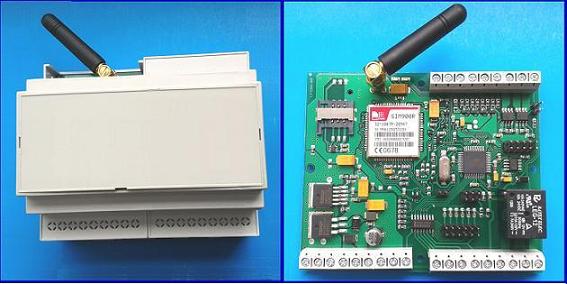

BR160SM / BR161SM with Simcom SIM900 GSM modem
Download application file

BR160SM / BR161SM

BR160SM/BR161SM*
2SMT-4A-A
2FLOW-4A-A
4A-A
6D-4A-A
GATE-A


Outputs
4
4
4
4
4
Timer Output
1
1
1
1
-
Digital inputs
4
4
6
6
6
Digital inputs event
1-0 or 0-1
1-0 or 0-1
1-0 or 0-1
1-0 and 0-1
1-0 or 0-1
Counter inputs
-
2
-
-
-
Flow monitoring
-
2
-
-
-
Internal control
yes
yes
yes
yes
-
Temperature inputs
2
-
-
-
-
Analog inputs
3+1
3+1
3+1
3+1
-
Alarm SMS ph.numbers
4
4
4
4
4
Abonent numbers
-
-
-
-
250

BR160SM/BR161SM*
2SMTm
S
4A
2A
GATE



Outputs
4
4
4
4
4
Timer Output
-
-
-
-
-
Digital inputs
4
6
6
4
6
Digital inputs event
1-0 or 0-1
1-0 or 0-1
1-0 or 0-1
1-0 or 0-1
1-0
Counter inputs
-
-
-
-
-
Flow monitoring
-
-
-
-
-
Internal control
-
-
-
-
-
Temperature inputs
2
-
-
-
-
Analog inputs
-
-
4
2
-
Alarm SMS ph.numbers
4
4
4
3
1
Abonent numbers
-
-
-
-
250

m2m (machine-to-machine) technology:
Applications from telematics to personal security;
m2m enables automated communication between a remote equipment and central management application, or between remote equipment and other remote equipments;
for example, automatically notify service centers and service personal of maintenance issues. connecting external equipment to other external equipment;
connecting external equipment to service personal;
connecting external equipment to service centers;

Features:

- All GSM range compatible (GSM 900/1800 or GSM 850/900/1800/1900)
- Notification with SMS
- Configuration with SMS
- Digital signal monitoring
- Analog signal monitoring
- Temperature monitoring
(for SMARTEC SMT172 temperature sensor)

Connections | Demo | Distributors

BieneRemote160SM/161SM Hardware Specification

BieneRemote
160SM / 161SM
Temperature
digital
analog
Pulse
digital
analog
Digital
analog
Digital
Analog
Gate

2SMT-4A-A
2FLOW-4A-A
-4A-A
-6D-4A-A
-GATE-A
Communication
via GSM
BR160SM - GSM 900/1800
BR161SM - GSM 850/900/1800/1900
Command and data transmission
SMS
Internal GSM modem
Simcom SIM900R / SIM900
SIM card reader
Yes
SIM card type
phase 2 GSM11.14 - SIM 3V
Firmware
Yes
Digital inputs

Pulse inputs
-
2
-
-
-
Number of digital inputs
4
4
6
6
6
- Transistor digital input
4
4
6
6
6
("0": 0...+1V; "1": +1.5…+12V without external limited resistor)
- Events digital inputs
4
4
6
6
6
- Events
0-1 or 1-0
0-1 or 1-0
0-1 or 1-0
0-1 and 1-0
0-1 or 1-0
- Digital signal filter
25-50ms
25-50ms
25-50ms
25-50ms
25-50ms
Temperature sensor inputs

Number of temperature inputs
2
-
-
-
-
Temperature events inputs
2
-
-
-
-
Temperature sensor type
Temperature
sensor Smartec SMT172
Smartec
-
-
-
 -
Temperature range
-45 to +130 °C
-
-
-
-
Accuracy
0.7 °C/1.7 °C
-
-
-
 -
Analog inputs

Number of analog inputs
4
4
4
4
-
0...+5V / 0-+10V / 4-20mA
- Analog event inputs
4
4
4
4
-
ACS712 DC current sensors 5A,20A,30A support
5, 20, 30A
5, 20, 30A
5, 20, 30A
5, 20A
-
ADC resolution
10bit
10bit
10bit
10bit
 -
Outputs

Number of outputs
4
4
4
4
4
- MOSFET transistor outputs
3
(MOSFET 50V max)
- Relay outputs
1
(NO, NC, COM; 28VDC / 230VAC/ 5A max)
- timer output
1
1
1
1
 -
Power Supply

Required Power supply
External +12 VDC stabilized
(operational range +9V ... +15V stabilized)
Power requirement
50mA typ
350mA typ, 2A peak during transmission (rms)
/
60mA typ
350mA typ, 3A peak during transmission (rms)
Voltage regulator
Internal voltage regulator
Power protection
Reverse-polarity protection
Environmental Conditions

Normal operational temperature range
-10…+55°C
Extreme operational temperature range (these temperature can affect the sensitivity and performance of the module)
-20…+70°C
Box
DIN-rail mount enclosure
Board dimension
103x86.5mm
with Box dimension
106x100x58mm

BieneRemote160SM/161SM Firmware Specification


BieneRemote
160SM / 161SM
2SMT-4A-
2FLOW-4A-A
-4A-A
-6D-4A-A
-GATE-A


Number of controlled outputs
4
4
4
4
4


Number of digital event inputs
4
4
6
6
6
Number of readable digital inputs
4
4
6
6
6
Number of pulse inputs
-/DIV>
2
-
-
-
Counter limit
-
65535
-
-
-
Number of event pulse inputs
-
2
-
-
-
Number of temperature event inputs
2
-
-
-
-
Number of analog event inputs
3+1
3+1
3+1
3+1
 -
Number of readable analog data
4
4
4
4
 -


SMS events format
Text message
Text length (characters)
14
15
18
14
18
SMS to cell phones numbers
4
4
4
4
4
SMS digital data format
text
text
text
text
text
SMS message format for analog data
In % from Reference level
00,0 - 99,9
DC current in A
Battery voltage in V
In % from Reference level
00,0 - 99,9
DC current in A
Battery voltage in V
00,0 - 99,9
(user customised)
DC current in A
Battery voltage in V
(user customised)
DC current in A
Battery voltage in V
 -
SMS message format for temperature data
°C
-
-
-
-


Home and industrial automation control via SMS message.
You can receive text messages with the occurrence of an event automatically to GSM mobile (cell) phones. You can transmit command messages and switches the output - switch on/off remote equipment.

You can receive SMS messages at occurrence of the certain events - operation of entrance sensors. You can send SMS messages for management of the various equipment (the conditioner, the heating equipment).
