TRC50, Curve Tracer

The curve displayed on the screen shows component performances The Curve Tracer is an essential tool for troubleshooting circuits and testing components. The TRC500 is very useful in the early stages of failure analysis. It can identify electrical failures that exhibit abnormal voltage-current relationships at the output pins.

Field of Application

• Research laboratory
• Production facility
• Maintenance laboratory
• Quality control department
• College & University electronic teaching Field of Application

TRC50.pdf

CubeScope-20, 12-bit, 20MS/s Mixed PC Based Oscilloscope

• Oscilloscope: 2-Ch, 20 MS/s, 12-bit resolution, up to 8MS
• Arbitrary Waveform Generator: 2-Ch, 20MS/s or 1-Ch, 40MS/s, 12-bit resolution, up to 8MS
• Logic Analyzer: 16-Ch, 25MHz, up to 8MS
• AcquiFlex Software included
• Open PC Platform PC base with Windows XP, 512MB RAM, 40GB Hard Drive,CD-R Drive Small Footprint/Lightweight


ScopeLogicDAQ, up to 200MS/s

• Complete data acquisition system - composition of Digital Oscilloscope and Logic Analyzer
• Maximum sampling rate: 200MHz - 1 analog + 8 digital channels 100MHz - 2 analog + 16 digital channels
• ADC resolution: 8 bits
• Analog bandwidth: 20MHz
• Input voltage range: 25V (probe 1:1)
• up to 512kS per channel
• Spectral Analysis (FFT)
• Easy to use software

Acquitek provides new PMC Instruments

PM480: High Resolution Digitizers, 105MS/s, 14-bit, 2-Ch with custom FPGA firmware (DDC, FIR, Averaging, FFT,...)

PM488: High Resolution Generators, 150MS/s, 14-bit, 2-Ch

TR122, 2 Channels 12-Bit 200 MS/Sec Transient Recorder

• Single slot 3U CPCI Transient Recorder
• 200 MS/s on two independent 12-bit analog channels
• 0.5V to 250V bipolar full scale ranges
• 2MS memory per channel
• Familiar turnkey software provided
• Open source software environment for development

The TR122 Transient Recorder is a high performance two channel transient waveform digitizing instrument in a single slot 3U Compact PCI module, capable of digitizing to 12 bits at rates up to 200 MS/s on each channel independently.

Acquitek provides new PCI Expansion System

• 1 to 13 slots
• Four Host Interfaces to chose from:
  PCCard - PCI -- CompactPCI
• Version with rechargeable battery
• 3.3 Volt PCI bus signaling versions
• Full PCI bus bandwidth
• Full PCI busmastering capable

CS328
2-Ch analog, 10-bit, 100MS/s, A/D + 8 Digital Channel, 100MS/s + 1 signal generator 10MHz USB 2.0

- 2 Channels, 10 bits, 100MS/s simultaneously
- 8 digital inputs sampling at 100MS/s
- 1 Signal generator 50MS/s
- 4 MSamples Storage

A Very low-cost solution!

UDS-2020 20GHz PC-Sampling Oscilloscopes

The UDS-2020 is the world Faster PC-Sampling Oscilloscopes, which offers the widest range of measurements and waveform processing capabilities of any multi-Gigahertz PC-scope. With excellent measurement repeatability, exceptional vertical resolution and fast display update rate, the UDS-2020 is a powerful measurement tools for semiconductor testing, TDR characterization of circuit boards, IC packages and cables, and high-speed digital data communications. It is a key tool for R&D and production testing.

• DC to 20 GHz Bandwidth
• 14-Bit Vertical Resolution
• 10 ps/div to 2 ms/div Time Base
• 100 fs Sampling Interval
• DC to 1 GHz Full-function Direct Trigger Optional
• 10 GHz HF Trigger with UDX-T01 Head
• 40 ps Step Generator for TDR
• Up to 4K/Channel record length

AcquiStar: StarFabric Bridge

• Direct PC control of PXI/CompactPCI systems
• Multi-chassis configurations for PXI/CompactPCI
• Up to 64-bit, 66 MHz PCI bus extension
• StarFabric link performance; 528 Mbytes/s peak (64-bit, 66 MHz PCI), and 132 Mbytes/s peak (32-bit, 33 MHz PCI)

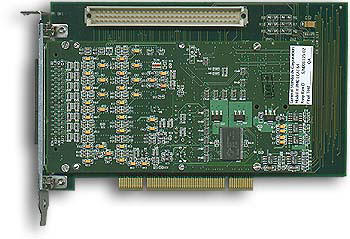

PCI-16-AI64-SSA
PCI-16AI64-SSA 64-Channel, Simultaneous Capture, 16-Bit Analog Input PCI Board

- 64 Single-ended Analog Input Channels
- 200kHz Sampling rate per channel (simultanuously)
- 16-bit resolution
- 1MBytes FIFO
- D32 / D64; 33MHz, 66MHz PCI
- Exist also in cPCI or PMC format

PCI-16-AI64
64-Channel, 16-Bit Analog Input PCI Board

- 64 Single-ended or 32 Differential Scanned Analog Input Channels
- Up to 500kHz Sampling rate
- One Delta-Sigma A/D converter, 16-bit resolution
- 64kSamples FIFO
- Continuous and Burst (One-Shot) Input Modes
- Exist also in cPCI or PMC format

PulseBlasterESR: High Speed Programmable Pulse/Pattern Generator

• High speed - Up to 400 MHz clock frequency
• 24 independently controlled output channels
• 4 BNC bracket mounted connectors
• 50 ohm impedance matched outputs
• Programmable pulses from 3 ns to 20 us per instruction
• Sub-1 ns rise/fall times
• 3.0 ns pulse resolution (at 400 MHz)
• 512 or 4k pulse program memory

USB16200, 16 Channel USB Logic Analyzer

• 200 MHz sampling rate
• 16 Channels
• 1Meg Samples/Channel data buffer
• Flexible trigger options
• External clock input
• Extended capture time function
• Variable input threshold
• Variable pre-/post trigger buffer sizes
• Digital logger capabilities
• User-friendly software
• Runs on Windows 98/ME/2000/XP
• Plugs to the PC USB port
• Small size

AcquiREC32, Multi-channels Data Recorder System 10MS/s, 32-Ch, 12-bit

The Open Platform AcquiREC32 provides at low cost per channel, high technology 12 bit digitizers for high speed, high accuracy recording up to 40MS/s.

Data Recorder System
Scalable Recorder from 4 channels, up to 32 channels.

• 32 Channels synchronous at 10MS/s each
• 16 Channels synchronous at 20MS/s each
• 8 Channels synchronous at 40MS/s each
• 12 Bit of resolution
• 70 MHz Bandwidth
• Up to 32M Samples per channel

Software - AcquiFlex32, Oscilloscope software

DA8150 150 MS/s, 8 Output Channels, 12-bit Arbitrary Waveform Generator

• 150 MS/s, 12-bit vertical resolution
• Up to 8 analog outputs at +2Vpp
• Single mided-size PCI compliant card
• SFDR less than -60 dB at 100 MHz
• 512 kS memory standard on each channel
• 1 TTL marker outputs standard
• 1 TTL trigger input
• 1 External Clock input
• Drivers for Windows 95, 98, NT, 2000, XP
• SDK for C/C++ and LabVIEW
• Linux on request

CH Series. High Speed Multifunction Analog I/O Boards for PCI bus

• 2 Input Channels
• Separate 20 MS/s A/D Converter per Channel
• 25 MS/s single channel
• 12 Bit A/D Resolution
• Up to 16 MB Local Acquisition Memory
• Analog, Digital, Software Triggering Modes
• 2 Output Channels with Arb/Function Generation Modes
• 20 MS/s D/A Converter per Channel
• 40 MS/s single channel
• 12 Bit D/A Resolution
• Analog Reconstruction Filtering
• Up to 16 MB Local Waveform Memory
• 16 Digital I/Os (Synchronous with Analog I/O)
• 2 Counter/Timers
• PCI Bus-Mastering Transfers at >80 MB/s sustained Onboard 143 MHz, 32 Bit DSP for Numerical Coprocessing
• Windows 98/Me/2000/XP, Linux Compatibility

CM Series. Multifunction Analog I/O Boards for PCI bus

• 16/32 Single Ended Inputs (8/16 in Differential Mode)
• Up to 1 MS/s Maximum Sampling Rate
• 16 Bit A/D Resolution
• Up to 16 MB ( 8 MSample) Local Acquisition Memory
• 64k Channel-Gain List
• Flexible Triggering Modes
• Up to 2 Output Channels (Waveform Quality)
• Up to 1 MS/s D/A Converter per Channel
• 16 Bit D/A Resolution
• Up to 16 MB ( 8 MSample) Local Acquisition Memory
• 16/32 Digital I/O’s (synchronous with analog I/O)
• Up to 3 Counter/Timers
• PCI Bus-Mastering Transfers
• Onboard 143 MHz, 32 Bit DSP for Real-Time Processing and Control
• Windows 98/Me/2000/XP, Linux Compatibility

Data Acquisition

AD132 - 12 bit, 250kHz, 16 A/D channels, 8 digital I/O.
The AD132 is a versatile high speed Data Acquisition PC Card. It can digitize with a resolution of 12-bits at up to 250kHz and offers 16 A/D channels.
The card comes with Win32 application source code, device drivers and full register programming details. Some of its features are listed below.

MF232 - 12 bit, 250kHz, 16 A/D channels, 2 D/A, 8 Digital I/O
The MF232 is a versatile high speed Data Acquisition PC Card. It can digitize with a resolution of 12-bits at up to 250KHz, offers 16 A/D cannels and 2 D/A channels.
The card comes with Win32 application source code, device drivers and full register programming details. Some of its features are listed below.

MF236 - 12 bit, 625kHz, 16 A/D channels, 2 D/A, 4 I/O.
The MF236 is a versatile high speed Data Acquisition PC Card. It can digitize with a resolution of 12-bits at up to 625kHz, offers 16 A/D channels, 2 D/A channels and 4 I/O lines.

AD142 - 14 bit, 2x300kHz, 8 A/D channels, 8 I/O.
AD218 - 24 bit/1kHz, 16 A/D channels, 8 I/O
D403C - 40 channel DIO, 3 counter/timer PCMCIA card

Handyscope-HS3

• Storage Oscilloscope
• Spectrum Analyzer
• Transient Recorder
• Arbitrary Waveform Generator
• Multimeter

The Handyscope-HS3 is a powerful computer controlled measuring instrument that consists of four measuring instruments: a Multimeter, Oscilloscope, Spectrum analyzer and Transient recorder. Also an AWG (Arbitrary Waveform Generator) is available. This new powerful and compact measuring instrument can solve almost every measurement problem.

CG400-PCI 400MHz Frequency Synthesizer for PCI bus

• 100 kHz to 400 MHz Clock & Sinewave Outputs • Uses Direct Digital Synthesis (DDS) technology • Programmable in 0.23 Hz Step Size • Programmable Frequency Sweep (Chirp) • Glitchless, frequency/phase jumping • Auxilliary user programmable logic • Software drivers for Windows 98 / ME / NT4 / 2000/ XP plus GUI Interface

CG100-PCI 100MHz Frequency Synthesizer for PCI bus

• 100 kHz to 100 MHz Clock & Sinewave Outputs • Uses Direct Digital Synthesis (DDS) technology • Programmable in 0.069 Hz Step Size • Programmable Frequency Sweep (Chirp) • Glitchless, frequency/phase jumping • Auxilliary user programmable logic • Software drivers for Windows 98 / ME / NT4 / 2000/ XP plus GUI Interface
